Design Your Project with the Next Generation of High Voltage Fuses
Your Reliable Pyro Fuse Manufacturer
As a leading high voltage DC Fuse manufacturer, we offer high-quality pyro fuses that are designed to meet your needs. We also offer ODM and OEM services to help you customize your pyro fuses to your exact specifications.

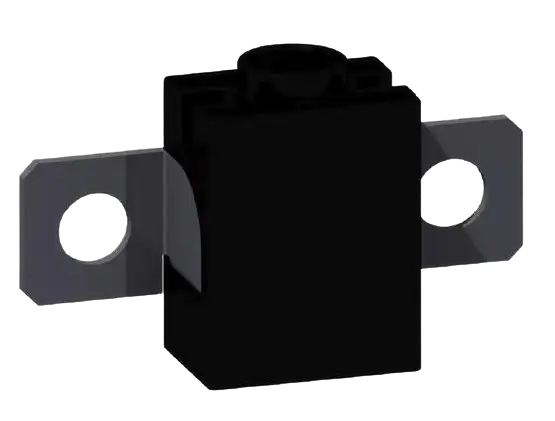

1000Vdc 400A Pryo Fuse

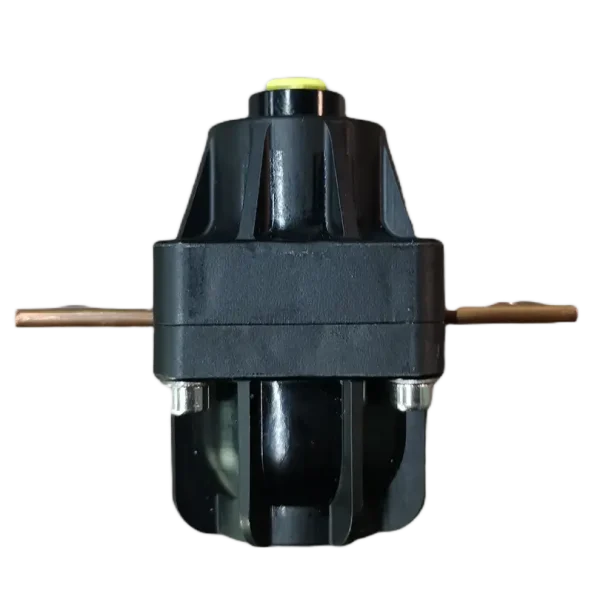

500Vdc 50-250A Pyro Fuse
500Vdc 50-400A Pyro Fuse
Intelligent
The protection strategy can be adjusted according to the application scenario
Ultra Fast
The fault can be cut off in 1/10000 second
Full Range
Reliable breaking of all faults
Long Life
Low rated power consumption, can bear impulse current
Electric Parameter
- Current carrying capacity： 400A@85℃
- （Load cable 95mm2）
- Breaking capacity： 1000V/15kA/25μH
- Resistance (ambient): before breaking. ≤50 μΩ
- After breaking. ≥10MΩ/1000V
- Flip-flop resistance： ≥1.8Ω to ≤2.3Ω
- Trigger current： 1.75A/0.5ms
- 1.2A/2ms
- Safety current： ≤0.4A
- Detecting current: 40mA
Other Parameter
- Operating temperature range: -40°C~125°C
- Storage temperature: -40°C~65°C
- Vibration resistance conforms to AK-LV 124
- Mechanical shock resistance conforms to AK-LV 124
- Temperature shock resistance conforms to AK-LV 124
- Chemical resistance is met AK-LV 124
- Weight: ≤220g
- Terminal type: busbar M8
- Trigger ABX-5
Electric Parameter
- Rated Voltage: 500VDC
- Rated Current: 50-250A
- On State Resistance: ≤50uΩ
- Off-impedance: ≥50MΩ/500V
- Breaking Capacity: 0-0.6kA,L≤20uH
- Actuator Resistance: 2±0.5Ω
- Trigger Current: ≥1.75A/0.5ms,Nonpolarity
- Safe Current: ≤0.4A
Other Parameter
- Operating Temperature: -40℃~+105℃
- Storage Temperature: -40℃~+70℃
- Altitude: ≤4000m*
- IP Grade: IPX2 • Weight: ＜60g
- Impact And Vibration Resistance AK-LV 124
Electric Parameter
- Rated Voltage: 500VDC
- Rated Current: 50-400A
- On State Resistance: ≤50uΩ
- Off-impedance: ≥50MΩ/500V
- Breaking Capacity: 0-12kA,L≤20uH • Actuator Resistance: 2±0.5Ω
- Trigger Current: ≥1.75A/0.5ms,Nonpolarity
- Safe Current: ≤0.4A
Other Parameter
- Operating Temperature: -40℃~+105℃
- Storage Temperature: -40℃~+70℃
- Altitude: ≤4000m*
- IP Grade: IPX2 • Weight: ＜200g
- Impact And Vibration Resistance AK-LV 124
Limitations of Traditional High-voltage DC Fuses
High Temperature Rise and Power Consumption
To ensure the breaking speed of the short circuit, part of the current density of the narrow dia. is designed to be very high, so that the temperature rise and power loss of the fuse at the rated current are relatively high.
Existence of The Protection Blind Sopts
To reduce the temperature rise and power loss, the fuse usually needs to be used with reduced capacity, and the fuse itself has a minimum reaking current, making the very lower overload current a protection blind spots.
Single Protection Feature
The protection characteristics of the fuse are determined by the structural size, limited by the rated voltage and current, so it is difficult to flexibly adjust according to the application scenario and protection requirements.
Elevate Your EV Safety with Our Pyro Fuses
low-cost, fast-acting protection switch disconnects the circuit safely, reliably, swiftly, and efficiently, shutting down the power circulation before any short circuit can occur due to vehicle deformation in the case of a crash, accident, or malfunction.
Intelligent Detectio Algorithm
The protection strategy can be adjusted according to the application scenario
High-speed Breaking Technology
The fault can be cut off in 1/10000 second
Multiple Arc Extinguishing Technology
Reliable Breaking of All Faults, Low Rated Power Consumption, Can Bear Impulse Current
Our Focus on Quality Is Not Just a Promise

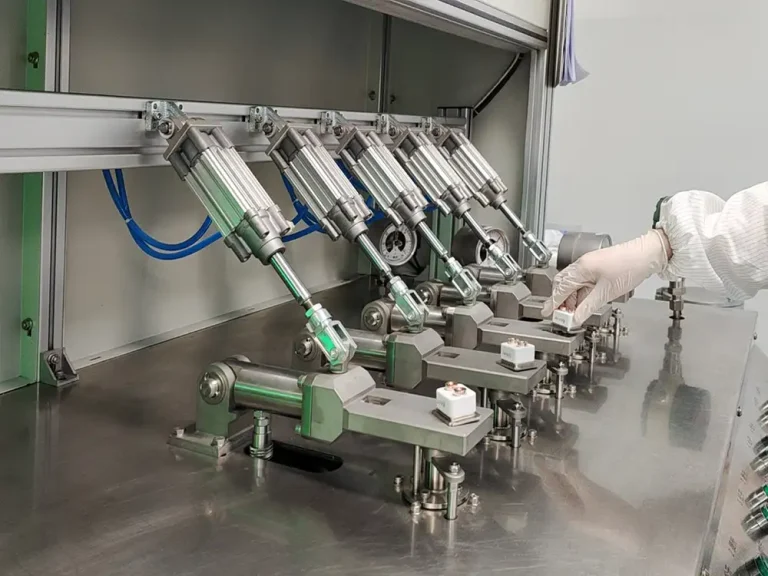

We have introduced advanced automatic production lines and advanced laboratory testing equipments. The whole production process is strictly in accordance with the IATF16949 production system.
PLM+ERP+MES system ensures the digitalization and intelligence of our factory production. The development, production and sales processes can be traced back to the source.
Rich Industry Experience Help You Realize Your Project
We have been manufacturing high-voltage DC relays, fuses, and other electrical devices exclusively for EVs, solar energy systems, and energy storage applications for many years.
- 19 Years Industry Experience
- 50+ Countries & Areas
- 30+ R&D team members
- Fully Certificate
Let‘s Provide Top-Level Safety Protection for Your EV/ESS Projects!
