What are Photovoltaic Floor Tiles?
Photovoltaic floor tiles are a new type of product that combines solar power generation technology with ground paving materials, belonging to the application category of BIPV (Building Integrated Photovoltaic) technology.
These tiles not only provide the basic functions of floor tiles, such as bearing capacity, pressure resistance, wear resistance, anti-slip, and waterproofing, but also convert light energy into electrical energy through built-in photovoltaic components. The generated electricity can power buildings or be connected to the grid.
As an innovative application of BIPV, photovoltaic floor tiles seamlessly integrate with ground landscape designs, serving as both decorative materials and green energy carriers. They require no additional space, making them particularly suitable for urban areas with limited land resources.
Further Reading: Top 10 BIPV Manufacturers in 2024: Updated Insights and Rankings
Source: pv-magazine.com
Structure of HIITIO Photovoltaic Floor Tiles
HIITIO’s photovoltaic floor tiles are composed of HJT solar cell modules, tempered glass, PVB, and a bottom support structure.
Structure Details:
- 6mm ultra-white tempered glass + 1.14mm PVB + 0.12mm HJT solar cell + 1.14mm PVB + 6mm ultra-white tempered glass
- The glass thickness range is flexible, with options such as 6mm, 8mm, 10mm, and 12mm.
1. Front and Rear Protective Glass
- High-strength tempered glass (optional thickness: 6mm, 8mm, 10mm, 12mm or above) offers impact resistance, anti-slip properties, and high transparency.
- Protects internal battery cells from damage while improving light transmittance.
- Durable enough to allow pedestrians to walk directly on it.
2. Solar Panel Modules
- Built-in HJT cells ensure high power generation efficiency and are among the most efficient solar cells available.
- Maintains stable performance even in low-light conditions.
3. Packaging Materials and Underlying Support
- PVB: Ensures stability and waterproofing of the cells.
- Underlying Support: Utilizes corrosion-resistant materials, such as aluminum alloy frames, to extend system lifespan.
Performance and Durability
- Tested to withstand the weight of daily pedestrian traffic, with compressive strength up to 1 ton per square meter.
- Features wear-resistant, waterproof, and anti-slip properties, ensuring long-term stability in public areas.
- Can be integrated with photovoltaic inverter management software to monitor power generation data, temperature, and load conditions in real time.
- Supports integration with smart city management systems, offering advanced energy management solutions.

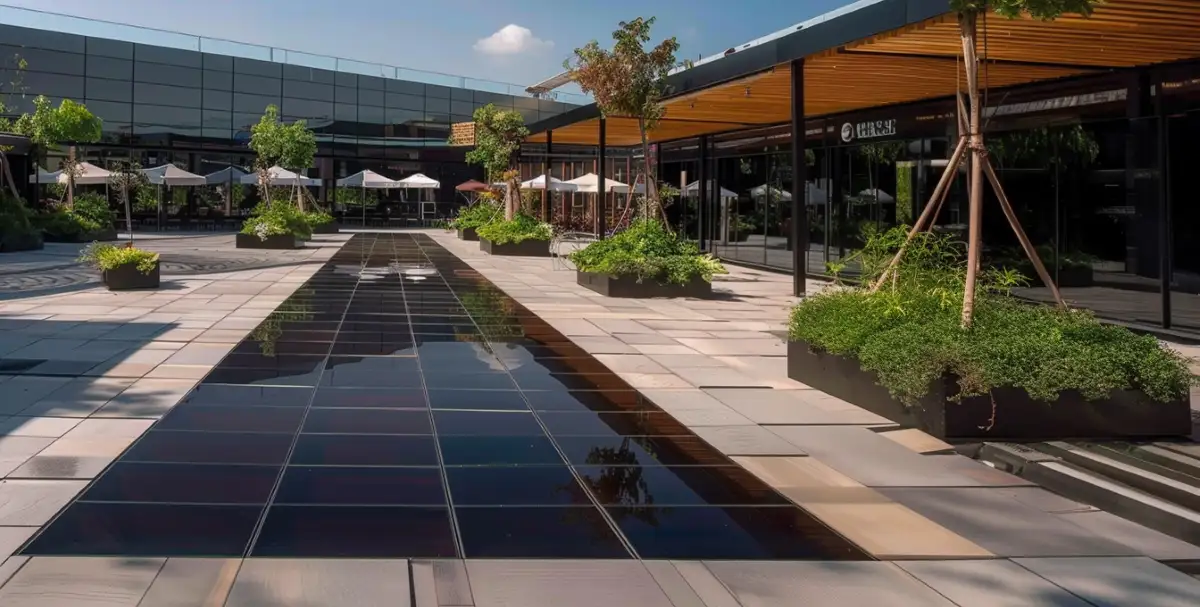

Application Scenarios of Photovoltaic Floor Tiles
As global urbanization accelerates, space resources in cities are becoming increasingly scarce. Photovoltaic floor tiles offer an innovative solution by integrating photovoltaic technology into ground paving, eliminating the need for additional land.
Key Applications
Public Spaces: Squares, trails, parking lots, etc.
Private and Commercial Properties: Courtyards and terraces.
Sources: onyxsolar.com
Smart City Initiatives: Innovative applications in urban construction.
Sources: prescouter.com
Environmental Benefits and Economic Value
Energy Efficiency and Power Generation
HIITIO’s photovoltaic tiles leverage HJT cells for optimal power generation, achieving a maximum output of 180W per square meter.
For instance, a 500㎡ photovoltaic floor tile project can generate approximately:
- 245 kWh of electricity per day.
- 89,425 kWh of electricity annually.
Carbon Emission Reductions
- Reduces 62,598 kg of CO2 emissions annually.
- Equivalent to:
- Carbon absorption by 2,845 trees per year.
- Avoiding emissions from vehicles traveling 312,990 kilometers.
- Zero carbon emissions for electricity consumption of 22 households annually.
- Avoiding the burning of 26 tons of coal.
By utilizing clean electricity generated by photovoltaic tiles, cities and businesses can:
- Decrease dependence on traditional power grids.
- Reduce energy costs.
Economic and Sustainability Advantages
Photovoltaic floor tiles offer a practical pathway to achieve a low-carbon economy, enhance energy self-sufficiency, and promote global energy transformation. They also bring forward-looking economic and environmental benefits to businesses and society.
HIITIO’s Commitment to Quality and Collaboration
HIITIO’s photovoltaic floor tiles meet international certifications, including IEC 61215 and IEC 61730, ensuring compliance with building regulations and quality standards.
Customization and Cost-Effectiveness
- Supports size and color customization to meet project-specific needs.
- Offers high production efficiency, short delivery cycles, and competitive prices.
Partnership Opportunities
We invite partners interested in the new energy industry to join HIITIO as distributors to jointly promote green energy development.
For more information or collaboration details, please contact our sales team: sales@hiitio.com.
