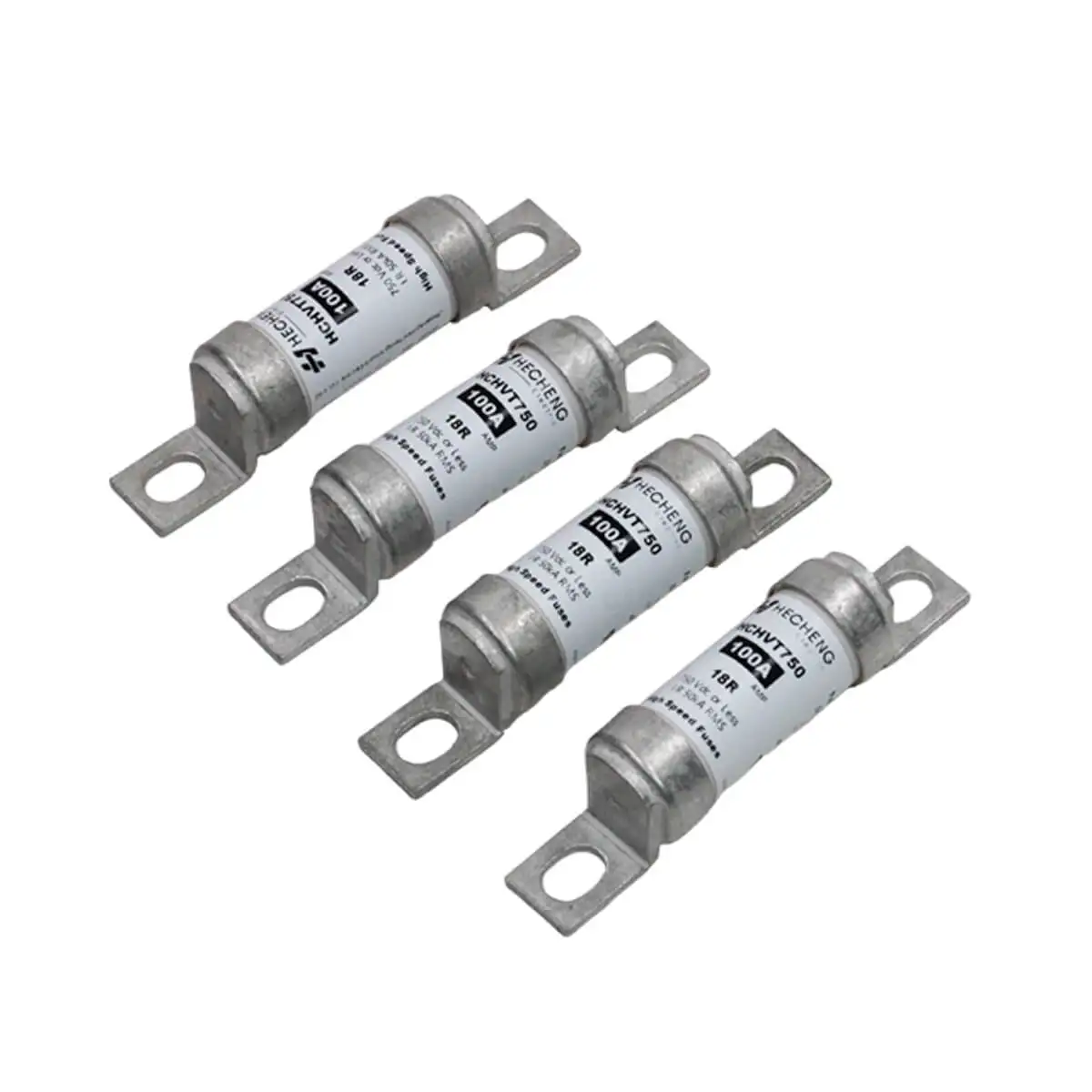

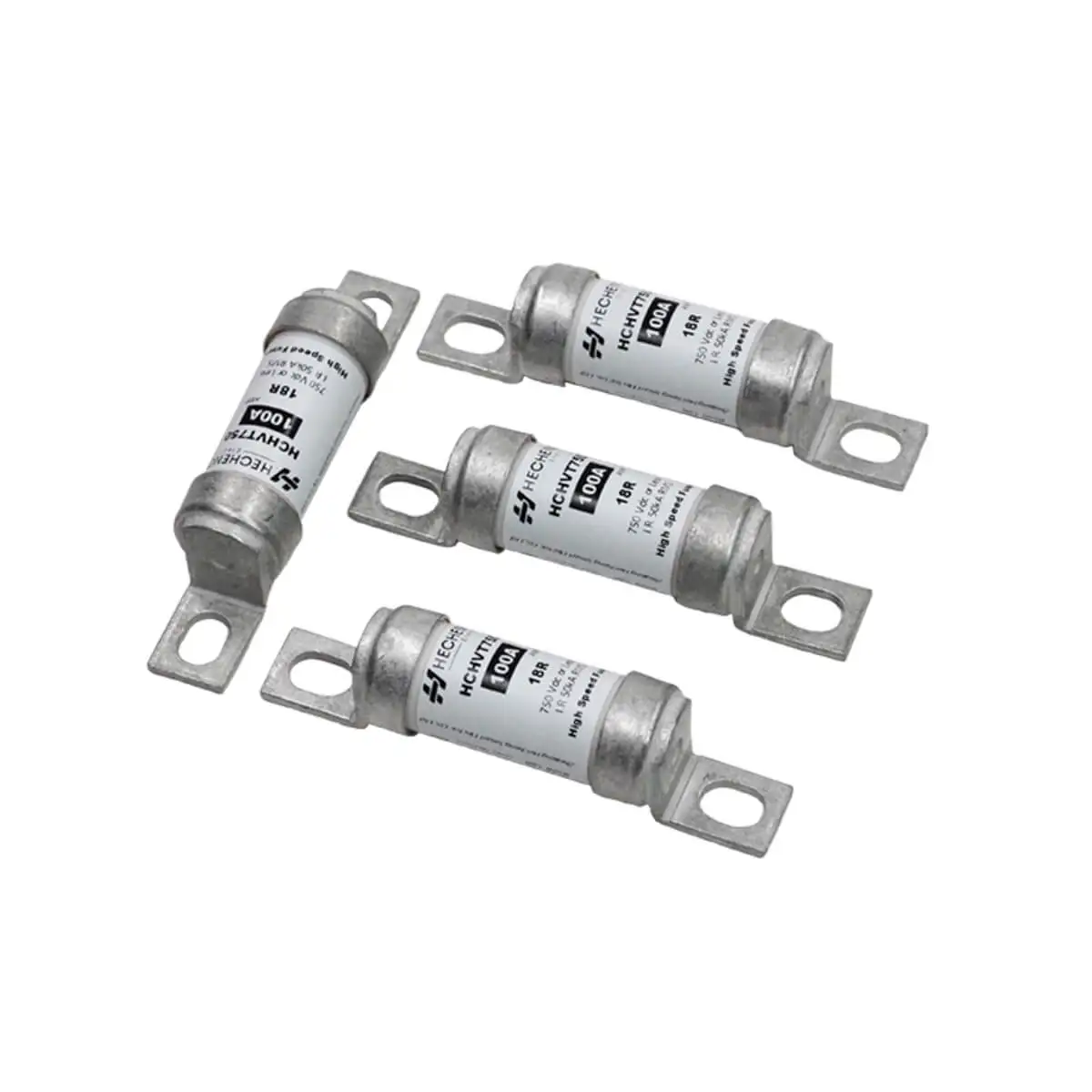

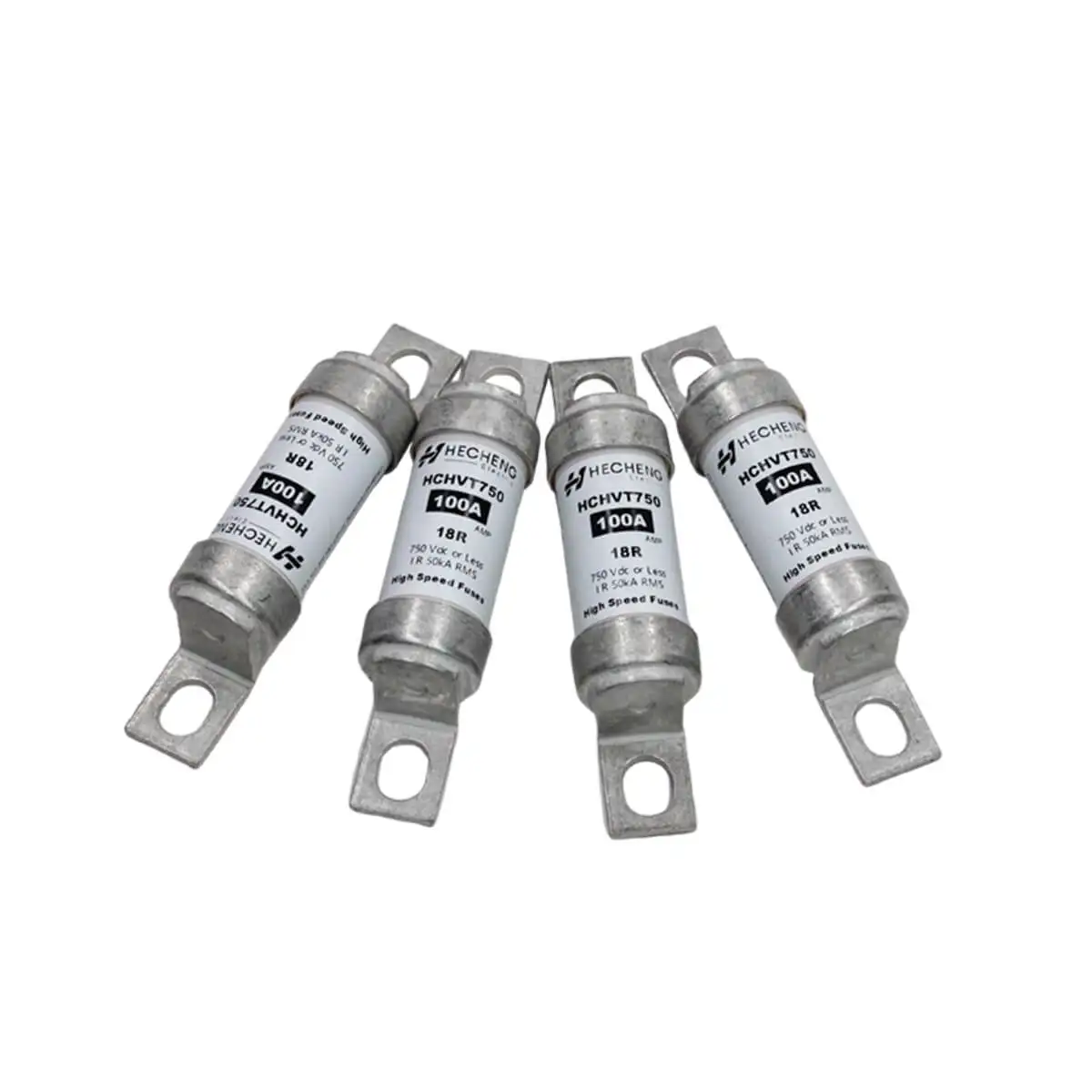

10-400A 750Vdc 18R Fast-Acting BS88 Semiconductor Fuse

  • Volts: 750Vdc (or less)
  • Amps: 10-100A
  • Interrupting Capacity: Max BC 50kA @ 750Vdc
, ,
SKU HCHVT750-18R Category Tags , , ,

Dimensions (mm)

Description

  • Design for DC Applications
  • Excellent DC Performance
  • Superior cycling capability
  • Low Watt Losses

Standards & Approvals

  • References:
    • UL 248.1 / UL 248.13
    • IEC 60269.1 / IEC 60269.4
    • GB 13539.1 / GB 13539.4
    • JASO D622
  • Manufacturing Compliance:
    • IATF16949 Quality System for Compliance with Automotive Requirements
  • Certifications:
    • Reach Declaration Available Upon Request
    • CE
    • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components
  • Can be applied in parallel to realize greater ampacity within sizing guidelines
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No. Fuse Amps Average @50KA/750Vdc Power Loss (W) Approvals
 A²s Melting A²t Clearing 80% 100% UL
HCHVT750-10A-18R 10A 7.56 15.60 0.75 1.50 ○ Pending
HCHVT750-16A-18R 16A 7.56 61.20 1.10 2.00 ○ Pending
HCHVT750-20A-18R 20A 34.56 277.20 1.25 2.50 ○ Pending
HCHVT750-25A-18R 25A 34.56 315.60 1.60 3.00 ○ Pending
HCHVT750-32A-18R 32A 36.72 379.20 2.50 4.50 ○ Pending
HCHVT750-35A-18R 35A 37.80 414.00 2.75 5.00 ○ Pending
HCHVT750-40A-18R 40A 116.64 552.00 3.20 6.00 ○ Pending
HCHVT750-45A-18R 45A 123.12 621.60 3.45 6.50 ○ Pending
HCHVT750-50A-18R 50A 136.08 828.00 4.00 7.50 ○ Pending
HCHVT750-63A-18R 63A 160.92 1080.00 5.30 10.00 ○ Pending
HCHVT750-70A-18R 70A 249.48 1368.00 6.20 12.00 ○ Pending
HCHVT750-80A-18R 80A 297.00 2160.00 7.80 15.00 ○ Pending
HCHVT750-90A-18R 90A 451.44 3024.00 9.50 18.00 ○ Pending
HCHVT750-100A-18R 100A 558.36 4032.00 10.30 20.00 ○ Pending



Applications

  • Electrical Energy Storage
  • Battery Pack Protection
  • EV/HEV Design (Pure Electric and Hybrid Vehicles)
  • Backup Protection for DC Relay
