HCHVT1000 BUK 59E

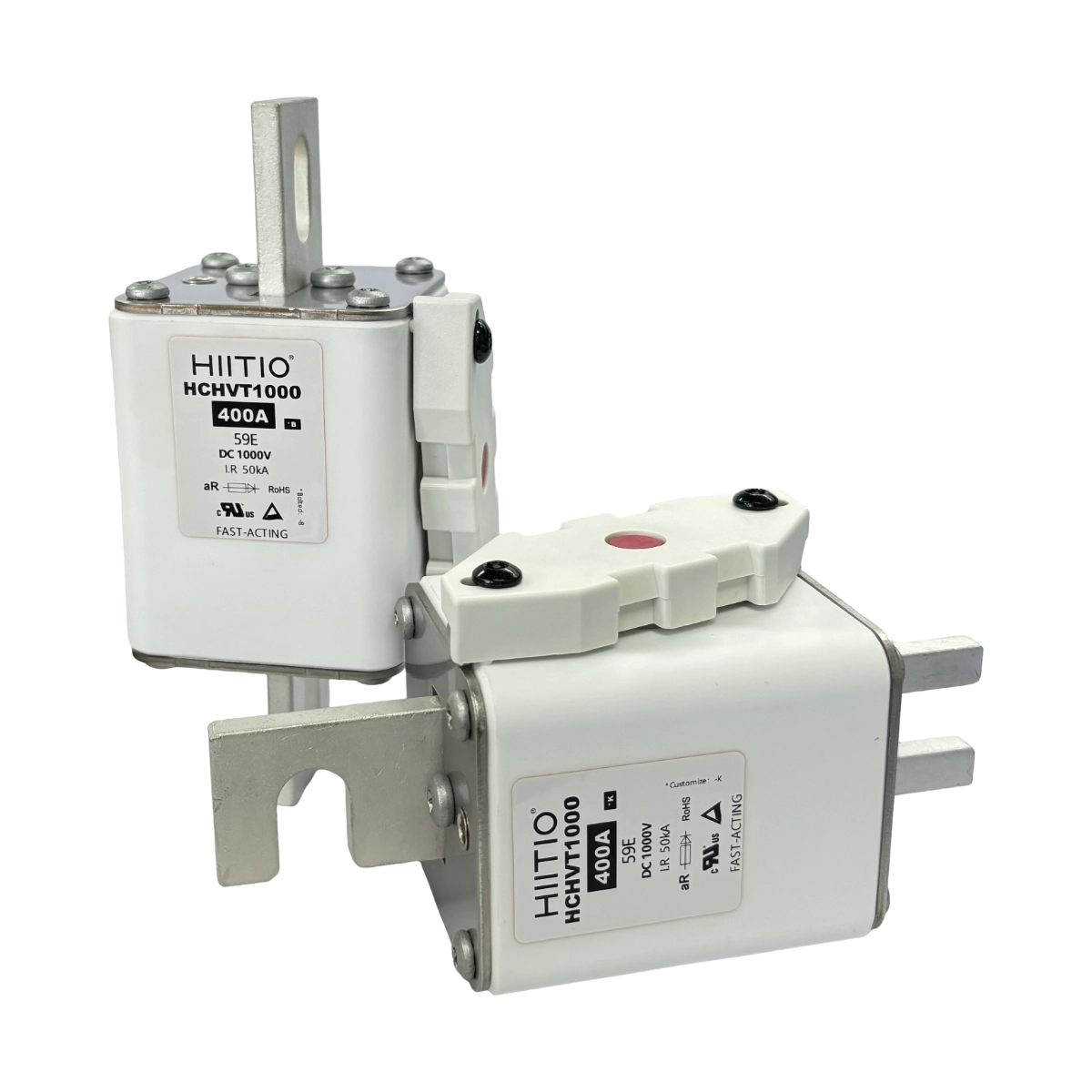

1000Vdc 100-800A IR.50kA High Voltage Fast Acting Square Body Fuse 2#

  • Volts: 1000Vdc;
  • Amps: 100-800A;
  • Interrupting Capacity:
    • Max 1000Vdc 50kA(or less);
    • Min BC ≥ 5In;
  • Time Constant: ≤ 3ms;
  • Class Type: aR；
, , , ,
SKU HCHVT1000-59E Category Tags , , , ,
Fast Quote
Specification
Description​
Applications​
Product Model​
Downloads
Dimensions
Certifications

Description

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the need of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines, excellent power of resisting voltaic impingement and environment temperature tolerance, excellent resistance to mechanical vibration and impact resistance.

CERTIFICATIONS

  • Refer To UL 248.1/UL 248.13
  • IEC 60269.1/IEC 60269.4
  • UL, TUV
  • RoHS Compliant

Fuse Ratings

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A²s Melting A²t Clearing 100% UL TUV
Bolted HCHVT1000-100B-59E 100A 2# 1,320 8,680 75 ● ●
HCHVT1000-125B-59E 125A 2# 1,880 12,400 80 ● ●
HCHVT1000-160B-59E 160A 2# 2,690 17,710 85 ● ●
HCHVT1000-200B-59E 200A 2# 3,840 25,300 90 ● ●
HCHVT1000-250B-59E 250A 2# 5,490 36,150 98 ● ●
HCHVT1000-275B-59E 275A 2# 7,900 52,170 105 ● ●
HCHVT1000-315B-59E 315A 2# 10,900 72,850 113 ● ●
HCHVT1000-350B-59E 350A 2# 13,900 91,650 120 ● ●
HCHVT1000-400B-59E 400A 2# 19,450 131,600 128 ● ●
HCHVT1000-450B-59E 450A 2# 30,950 192,700 135 ○ ○
HCHVT1000-500B-59E 500A 2# 43,680 267,900 143 ○ ○
HCHVT1000-550B-59E 550A 2# 56,420 347,800 150 ○ ○
HCHVT1000-630B-59E 630A 2# 104,650 540,500 180 ○ ○
HCHVT1000-700B-59E 700A 2# 145,930 739,350 188 ○ ○
HCHVT1000-800B-59E 800A 2# 223,440 1,160,000 195 ○ ○
  • UL：E533379（100-400A）；TUV：J50590371  （100-400A）
  • Application process to be determined
  • Bolted: xxxB-59E
Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A²s Melting A²t Clearing 100% UL TUV
Din HCHVT1000-100U-59E 100A 2# 1,320 8,680 75 ● ●
HCHVT1000-125U-59E 125A 2# 1,880 12,400 80 ● ●
HCHVT1000-160U-59E 160A 2# 2,690 17,710 85 ● ●
HCHVT1000-200U-59E 200A 2# 3,840 25,300 90 ● ●
HCHVT1000-250U-59E 250A 2# 5,490 36,150 98 ● ●
HCHVT1000-275U-59E 275A 2# 7,900 52,170 105 ● ●
HCHVT1000-315U-59E 315A 2# 10,900 72,850 113 ● ●
HCHVT1000-350U-59E 350A 2# 13,900 91,650 120 ● ●
HCHVT1000-400U-59E 400A 2# 19,450 131,600 128 ● ●
HCHVT1000-450U-59E 450A 2# 30,950 192,700 135 ○ ○
HCHVT1000-500U-59E 500A 2# 43,680 267,900 143 ○ ○
HCHVT1000-550U-59E 550A 2# 56,420 347,800 150 ○ ○
HCHVT1000-630U-59E 630A 2# 104,650 540,500 180 ○ ○
HCHVT1000-700U-59E 700A 2# 145,930 739,350 188 ○ ○
HCHVT1000-800U-59E 800A 2# 223,440 1,160,000 195 ○ ○
  • UL：E533379 （100-400A）；TUV：J50590371 （100-400A）；
  • Application process to be determined；
  • Din: xxxU-59E
Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A²s Melting A²t Clearing 100% UL TUV
Customize HCHVT1000-100K-59E 100A 2# 1,320 8,680 75 ● ●
HCHVT1000-125K-59E 125A 2# 1,880 12,400 80 ● ●
HCHVT1000-160K-59E 160A 2# 2,690 17,710 85 ● ●
HCHVT1000-200K-59E 200A 2# 3,840 25,300 90 ● ●
HCHVT1000-250K-59E 250A 2# 5,490 36,150 98 ● ●
HCHVT1000-275K-59E 275A 2# 7,900 52,170 105 ● ●
HCHVT1000-315K-59E 315A 2# 10,900 72,850 113 ● ●
HCHVT1000-350K-59E 350A 2# 13,900 91,650 120 ● ●
HCHVT1000-400K-59E 400A 2# 19,450 131,600 128 ● ●
HCHVT1000-450K-59E 450A 2# 30,950 192,700 135 ○ ○
HCHVT1000-500K-59E 500A 2# 43,680 267,900 143 ○ ○
HCHVT1000-550K-59E 550A 2# 56,420 347,800 150 ○ ○
HCHVT1000-630K-59E 630A 2# 104,650 540,500 180 ○ ○
HCHVT1000-700K-59E 700A 2# 145,930 739,350 188 ○ ○
HCHVT1000-800K-59E 800A 2# 223,440 1,160,000 195 ○ ○
  • UL：E533379 （100-400A）；TUV：J50590371 （100-400A）；
  • Application process to be determined；
  • Customize: xxxK-59E

Applications

  • ESS
  • Disconnector or Maintenance Safety Disconnect
  • Battery Pack Protection
  • Backup Protection For DC Relay

Downloads

Specification

Rated Products

HCBFG4-D-105ES

1500Vdc 50Ka 400-2000A Square Body ESS Fuse Connect D 4#

HCHVT1000-B-43E

1000Vdc 50kA 50-400A Square Body aR Fuse B 01#

HCHVT750-36E

25-315A 750Vdc IR.50kA Square Body Fuse 000#

1500V Square body series fuse
HCHVT1500-59E

1500Vdc 100-400A 250kA aR DC Square Body Fuse 2#
