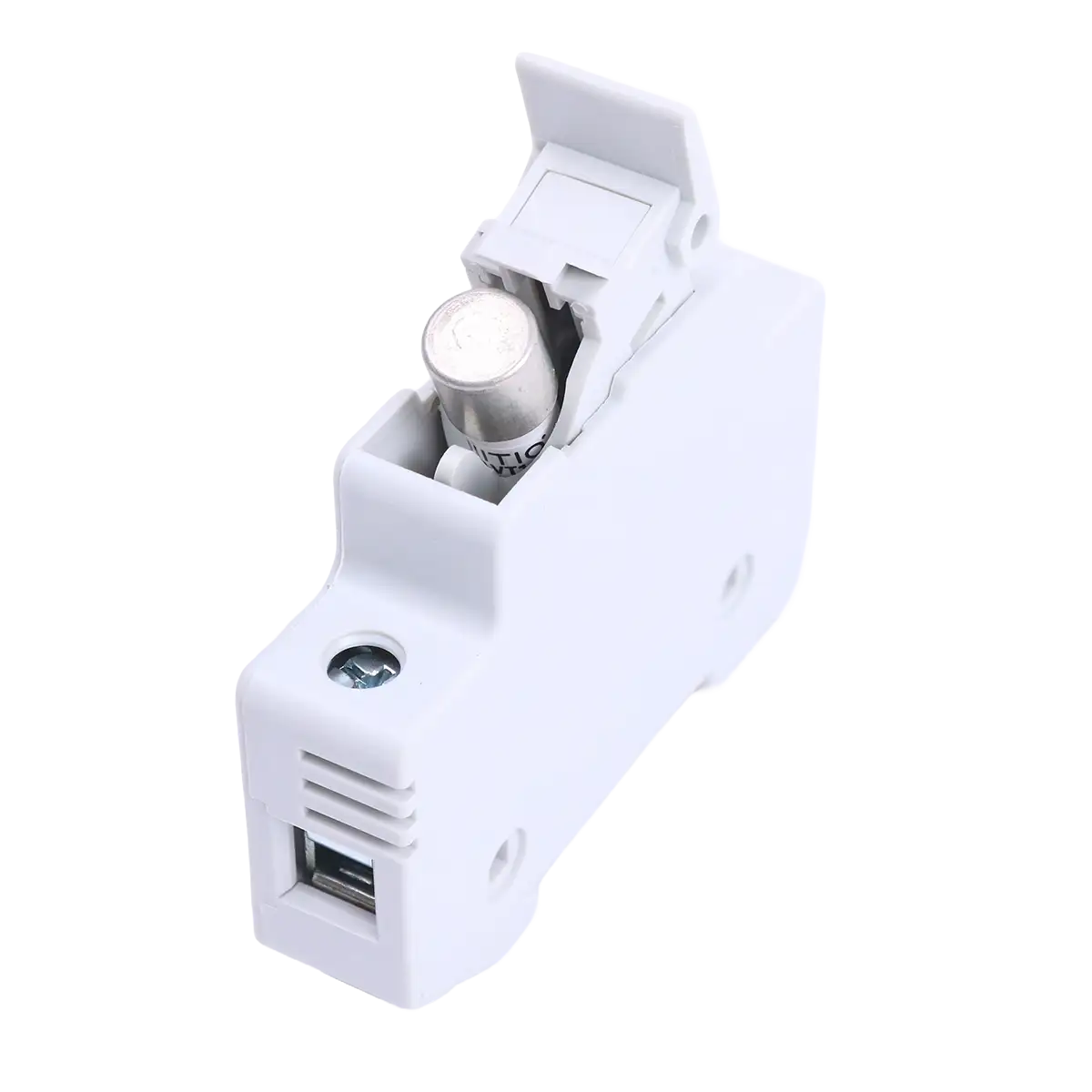

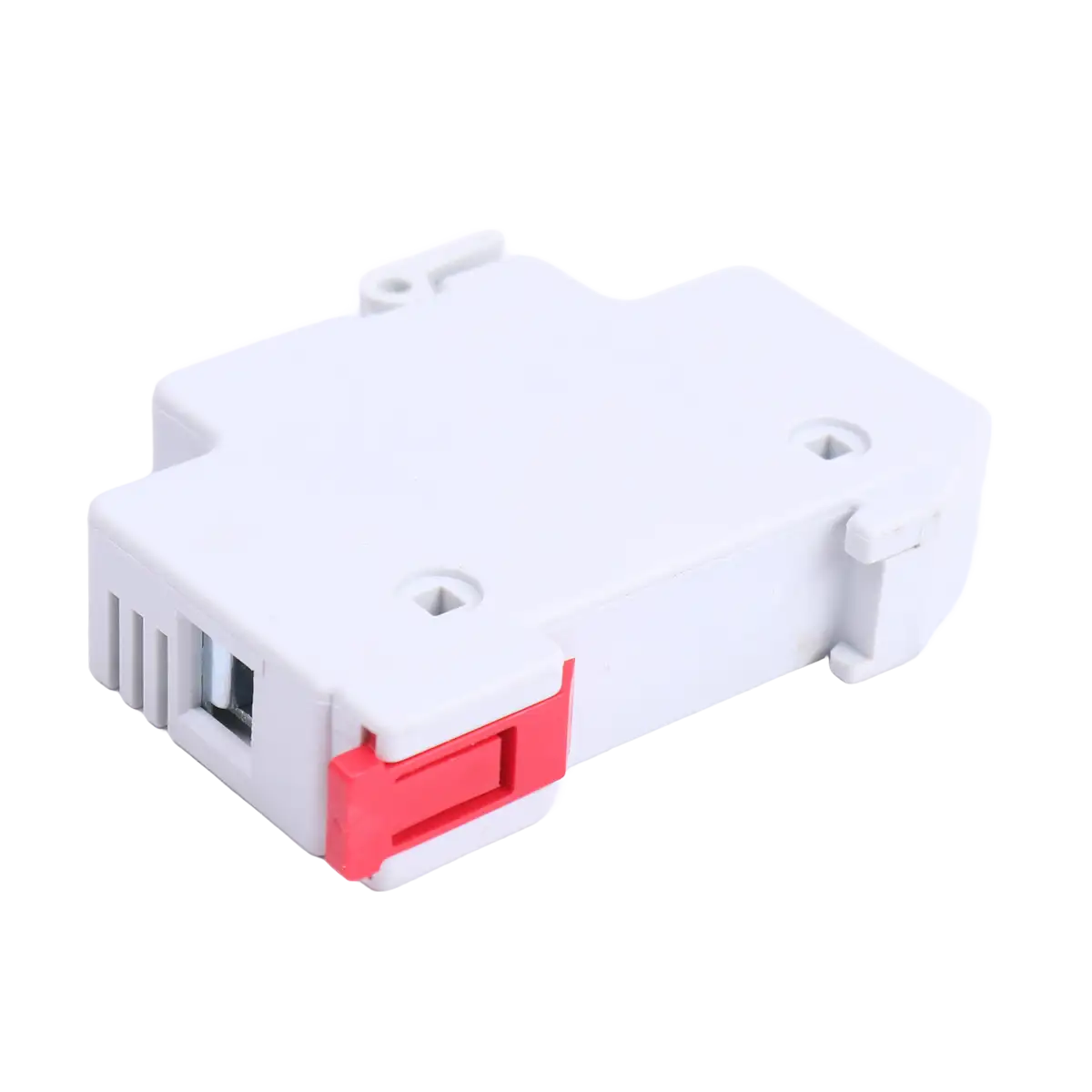

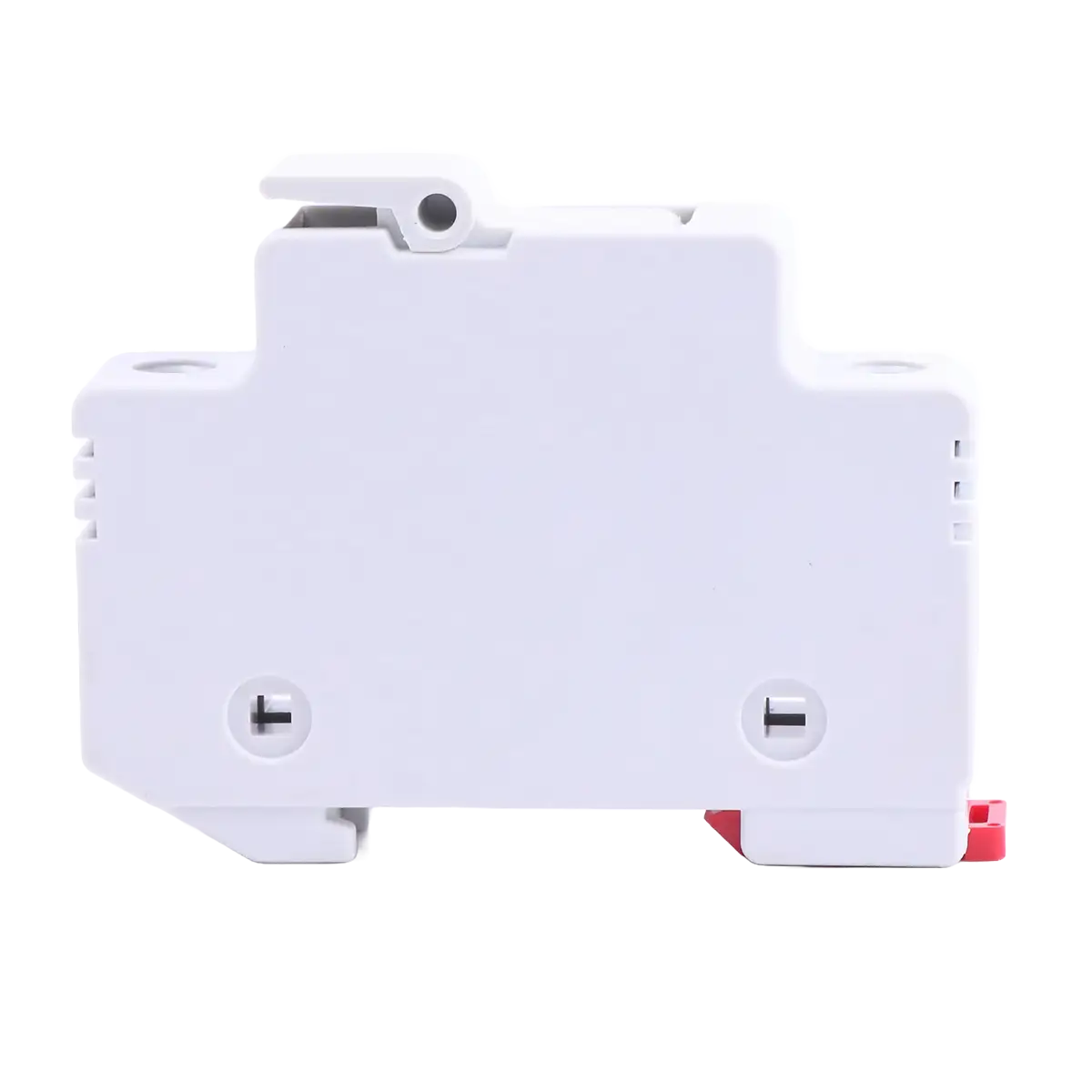

10x38mm Cylindrical gPV Fuse Holder
- Volts：1000 V (or less) Photovoltaic (PV)
- Volts：600 V (or less) UL / 690 V (or less) IEC
- Rated current: 30 A for IEC and UL（35A Max）
- Rated breaking capacity Icc: 30 kADc photovoltaic
- Suitable for fuse links with permitted rated power dissipation up to max 8W
Dimensions (mm)
Description
HIITIO HCPV1U DIN-Rail fuse holders are for PV systems/ UL Class CC and supplemental fuses, and IEC 10×38 fuses. They are available with and without indication in 1-, 2-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they maybe ganged together to meet specific application requirements.
Features
- Suitable for 10 x 38 gPV cylindrical fuse links
- Current rating: 30 A for IEC and UL (35A Max)
Standards/Approvals：
- IEC 60269-1
- UL 4248-1 Edition 1
- UL 4248-19 Edition 1
Technical Data
- Number of poles: 1
- Volts：1000 V (or less) Photovoltaic (PV)
- Volts：600 V (or less) UL / 690 V (or less) IEC
- Rated current: 30 A for IEC and UL（35A Max）
- Rated breaking capacity Icc: 30 kA Dc photovoltaic
- Suitable for fuse links with permitted rated power dissipation up to max 8W
- RoHS Compliant
- Mounting on 35 mm DIN-Rail
- Degree of protection: IP20
- Flammability：UL94-V0, self-extinguishing
Terminal points：
Box terminal: Cu 4 – 25 mm2 flexible, directly clamped or with wire-end ferrules (flexible + wire-end ferrule may not be possible with maximum cross-section)
Packaging：
- 12 per pack
