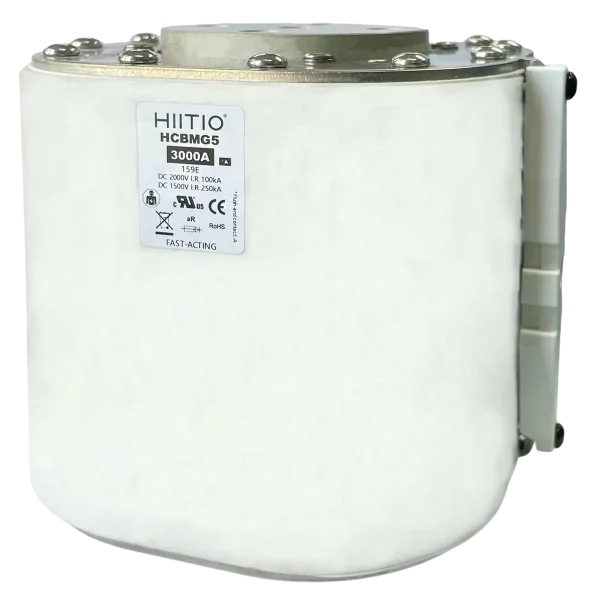

2000Vdc 1400-3000A DC Square Body ESS Fuse 5#
- Volts: 2000Vdc max
- Amps: 1400-3000A
- Interrupting Capacity:
- 2000Vdc 100kA (L/R ≤ 5ms)
- 1500Vdc 250kA (L/R ≤ 5ms)
- Min BC: ≥ 3 In
- Class Type: aR
,
,
Dimensions (mm)
Description
- Designed for DC applications
- Excellent DC performance
- Superior cycling capability
Standards & Approvals
- Refer to UL 248-13
- UL Listed, Std 248-13, File E533379
- Reach declaration available upon request
- UL, CE certified
- RoHS compliant
Work/Storage Conditions
- Operating temperature: -40℃ to +85℃
- Storage:
- Fuses should be stored in their original packaging under clean, dust-free conditions
- Storage conditions should not exceed 70% relative humidity
- Storage temperature range: -40℃ to +85℃
Fuse Ratings
| Part No. | Fuse Amps | Average 100kA @ 2000Vdc 250kA @ 1500Vdc |
Power Loss | Approvals | |
|---|---|---|---|---|---|
| Pre-Arcing I²t （A²s） |
Max Operating I²t （A²s） |
(W) | UL | ||
| HCBMG5-1400A-159E | 1400A | 783,750 | 3,360,000 | 340 | ● |
| HCBMG5-1500A-159E | 1500A | 1,045,000 | 4,745,000 | 390 | ● |
| HCBMG5-1600A-159E | 1600A | 1,325,700 | 5,435,000 | 420 | ● |
| HCBMG5-1800A-159E | 1800A | 1,567,500 | 6,600,000 | 430 | ● |
| HCBMG5-2000A-159E | 2000A | 2,185,000 | 9,800,000 | 490 | ● |
| HCBMG5-2500A-159E | 2500A | 4,417,500 | 19,600,000 | 525 | ● |
| HCBMG5-3000A-159E | 3000A | 7,695,000 | 38,880,000 | 580 | ● |
Applications
- Industrial ESS
