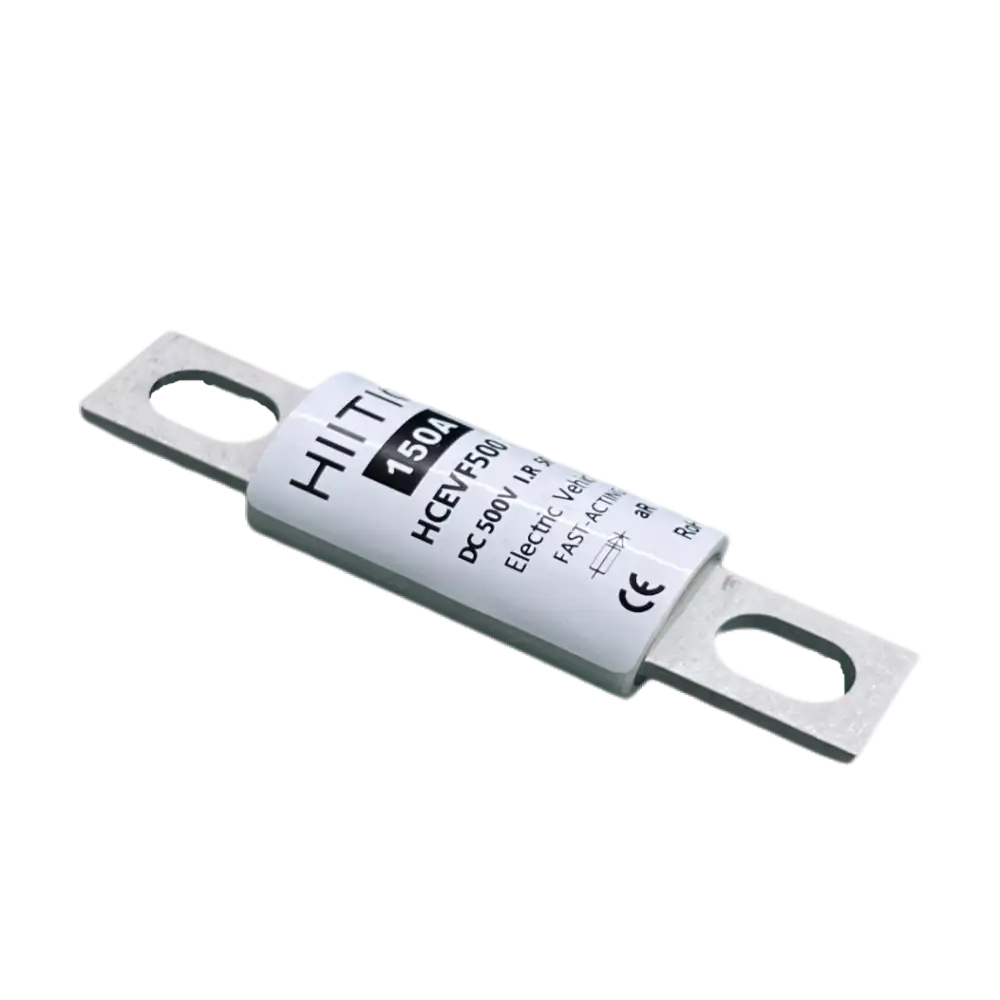

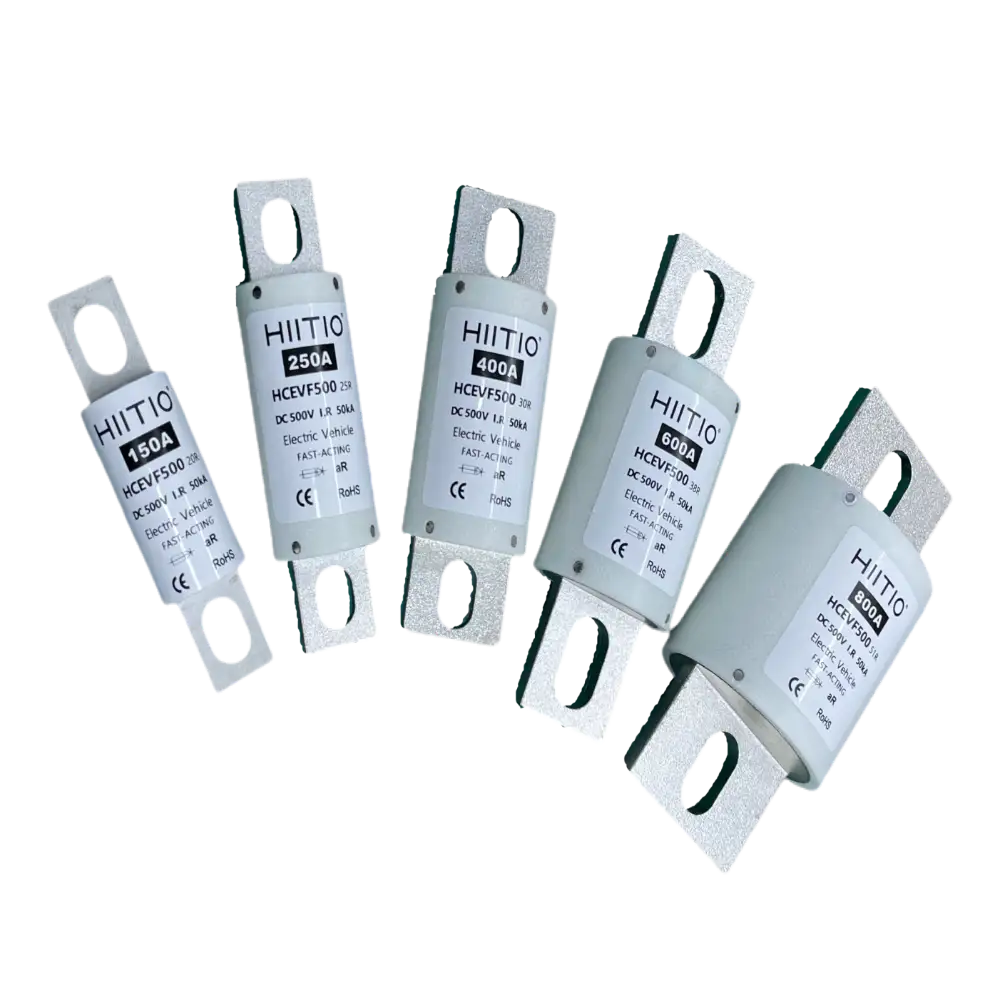

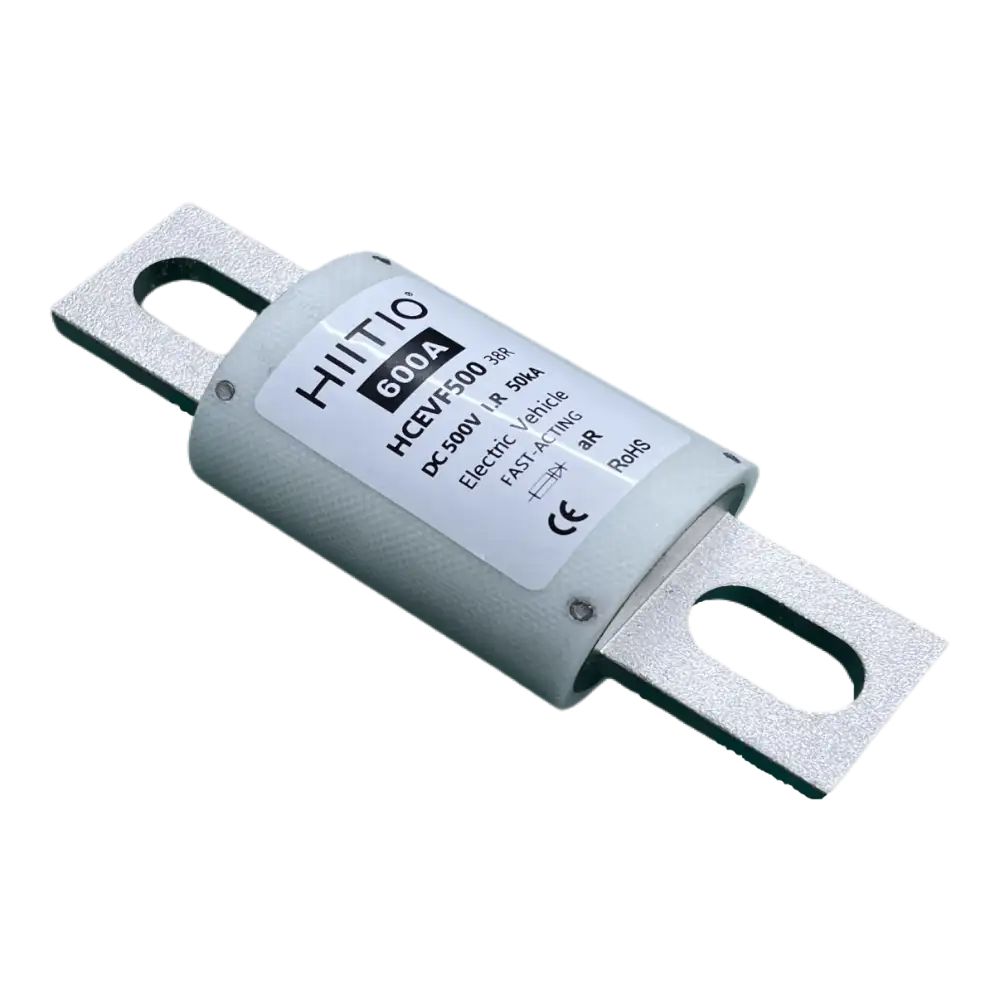

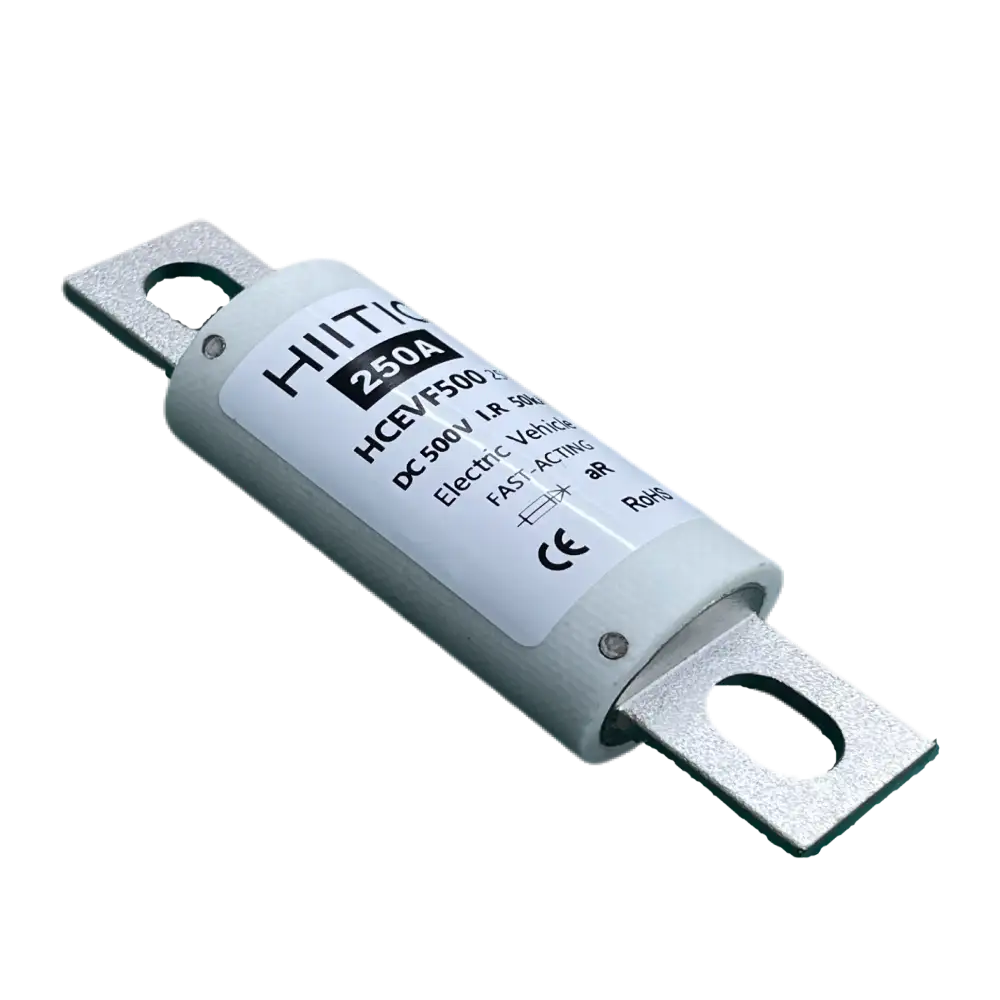

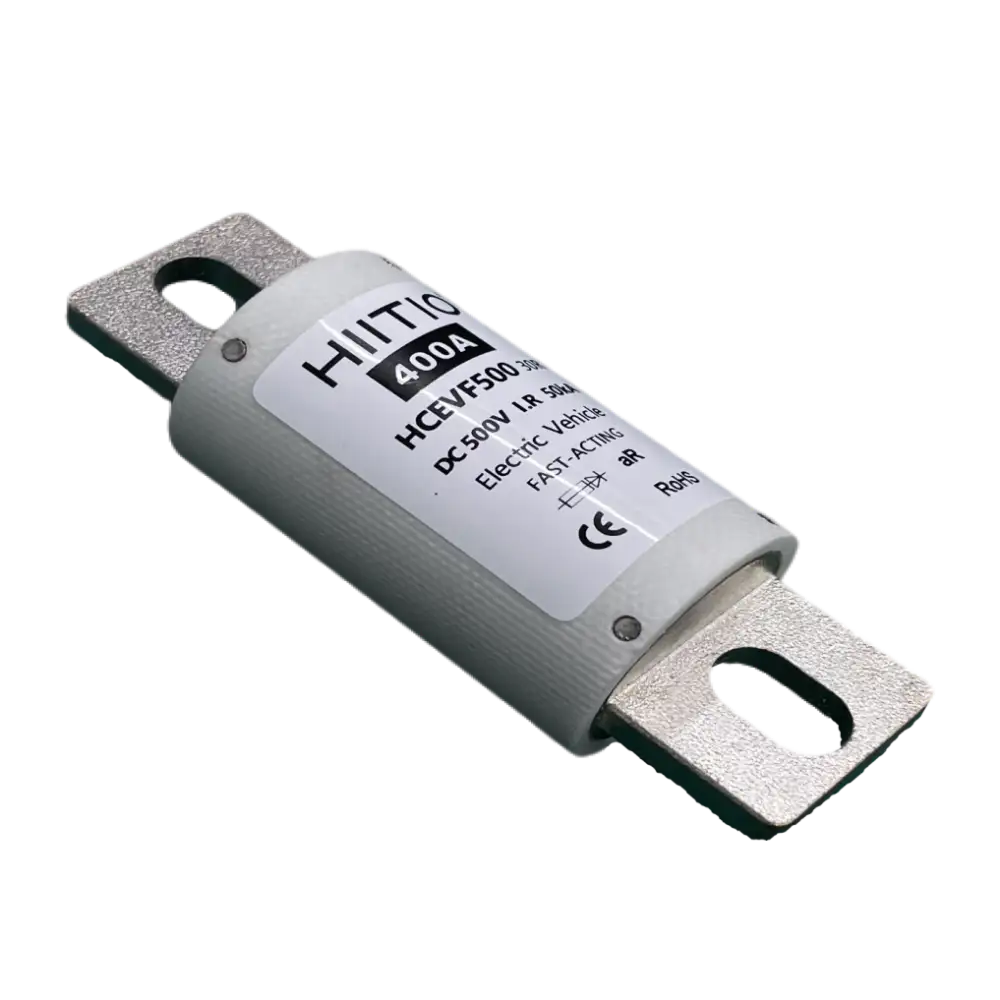

500V North American Style Electric Vehicle Power Semiconductor Fuse (Fast-Acting)

  • Volts: 500Vdc
  • Amps: 35-800A
  • Interrupting Capacity:
    • Rated Breaking Capacity: 50kA 500Vdc (or less)
    • Time Constant: 2.5+0.5 ms
    • Class of Operation: aR
, , ,
SKU HCHVF500 Category Tags , ,

Dimensions (mm)

S. Current A±1.5 B±1 C±1 D±1.5 E±0.5 F±0.5 H±1 G±0.5
20R 35-60A 81 20 40 60.5 8.5 15 3 13
26R 70-150A 92 26 44 68.5 8.5 20 3 13
31R 125-250A 92 31 46 72.5 8.5 25 6 12.5
38R 225-450A 110 38 53 81.5 10.5 25 6 20
51R 450-800A 110 51 53 81.5 10.5 40 6 20

Description

  • Design For Dc Applications
  • Excellent Dc Performance
  • Low arc voltage and low energy let-through (I²t)
  • Superior cycling capability
  • Low Watt Losses

Standards / Approvals:

  • Refer To UL248.13 or IEC60269.4
  • Approvals: UL (File: E533379), CE
  • RoHS Compliant

Features & Benefits:

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Can be applied in parallel to realize greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Rated Current Catalog no. Average @50KA/500Vdc Power Loss W Approvals
Melting A²S Clearing A²S UL
20 mm diameter case
35 35A HCHVF500-35A-20R 49 509 8
40 40A HCHVF500-40A-20R 111 1085 8
50 50A HCHVF500-50A-20R 231 2624 10
60 60A HCHVF500-60A-20R 305 3053 12
26 mm diameter case
70 70A HCHVF500-70A-26R 392 2194 14
80 80A HCHVF500-80A-26R 571 3413 16
90 90A HCHVF500-90A-26R 673 3901 16
100 100A HCHVF500-100A-26R 889 4876 20
125 125A HCHVF500-125A-26R 1764 10051 25
150 150A HCHVF500-150A-26R 2412 12075 28
31 mm diameter case
125 125A HCHVF500-125A-31R 1498 6122 22
150 150A HCHVF500-150A-31R 2059 8045 26
175 175A HCHVF500-175A-31R 2714 10844 34
200 200A HCHVF500-200A-31R 4050 14867 40
225 225A HCHVF500-225A-31R 8650 33908 45
250 250A HCHVF500-250A-31R 9094 51610 52
38 mm diameter case
225 225A HCHVF500-225A-38R 5549 30873 42
250 250A HCHVF500-250A-38R 7862 44372 48
275 275A HCHVF500-275A-38R 9859 55533 54
300 300A HCHVF500-300A-38R 12230 68624 58
325 325A HCHVF500-325A-38R 17098 87916 60
350 350A HCHVF500-350A-38R 18096 100456 65
400 400A HCHVF500-400A-38R 23962 133253 70
450 450A HCHVF500-450A-38R 33000 189670 78
51 mm diameter case
450 450A HCHVF500-450A-51R 25688 134620 70
500 500A HCHVF500-500A-51R 42515 205322 88
550 550A HCHVF500-550A-51R 53450 249650 95
600 600A HCHVF500-600A-51R 60133 283868 110
630 630A HCHVF500-630A-51R 73815 319280 120
700 700A HCHVF500-700A-51R 145880 515450 135
800 800A HCHVF500-800A-51R 161840 565500 150

UL Approvals: E533379 (35-800A); Time Constant: 2.5+0.5 ms
