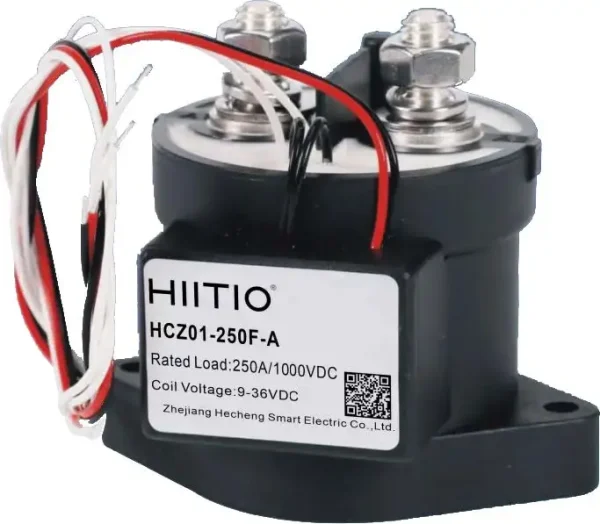

High Voltage 1000Vdc 250A Epoxy Resin Contactor
- Max. Switching Voltage: 1000VDC
- Rated Current: 250A
- Main Contact Type: SPST-NO
- Auxiliary Contact: SPST-NO/NC
- Auxiliary Contact Type: Optional
- Coil Rated Voltage: 12VDC\24VDC\9-36VDC
- Ambient Operation Temperature: -40°C~+85°C
- Ambient Operation Humidity: 5%~85%RH
,
,
,
Description
Compact structure, fully sealed package, internally filled with inert gas, combined with magnetic arc blowing out can quickly extinguish the arc so that the product shape can be small;
Epoxy resin package, the contact part is sealed in a sealed chamber filled with inert gas, contact no oxidation, arc no leakage, so as to ensure that the product has good safety;
Carrying current 250A continuously at 85°C
